5 Layer Water Tanks UAE
Dual-insulation five-layer construction β the highest-performance polyethylene water tank available in the UAE, keeping stored water up to 15Β°C cooler on open rooftops in UAE summer.

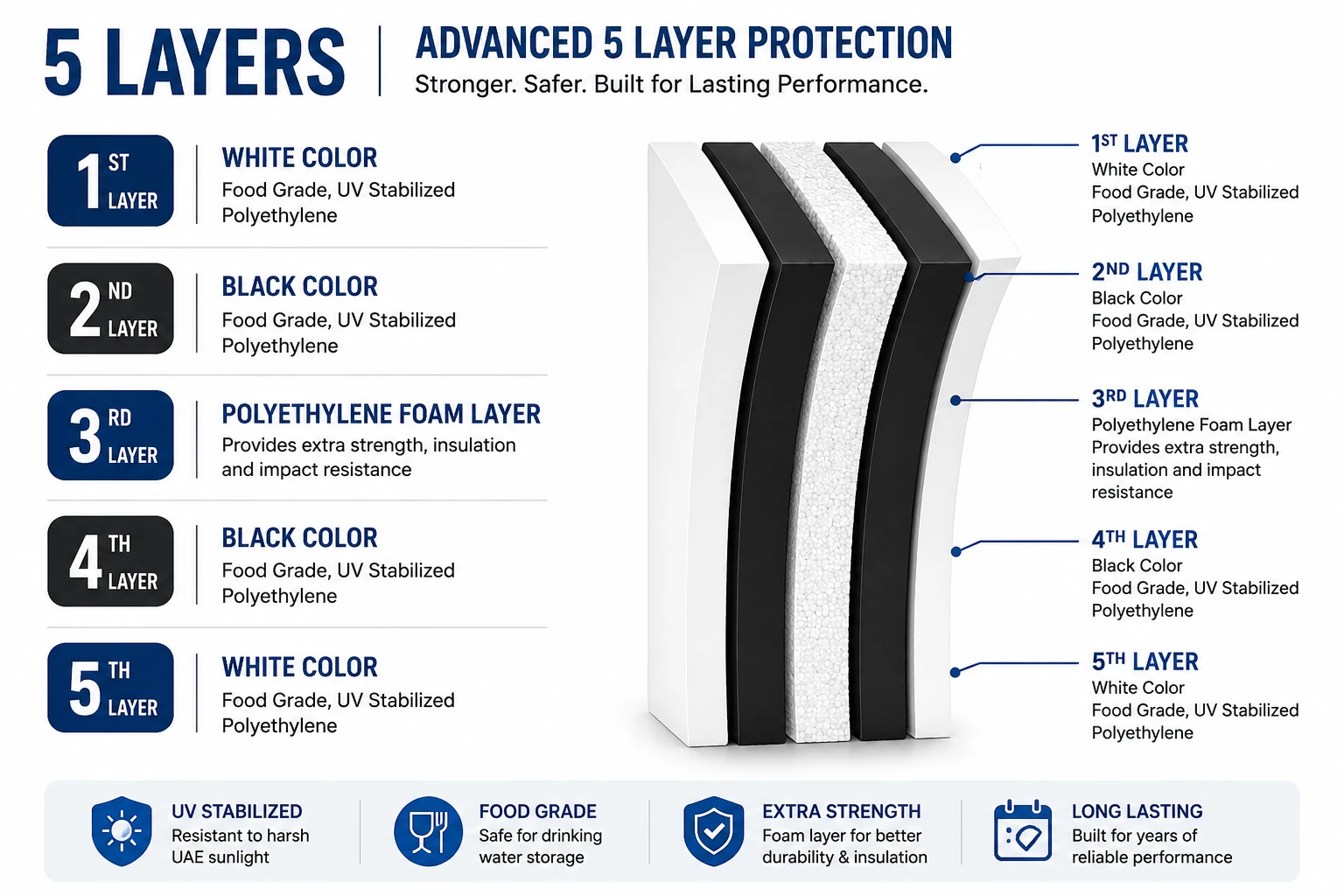

When a UAE rooftop tank sits in direct afternoon sun through a 50-degree summer, the temperature of stored water becomes a genuine health and comfort issue. KHAZAAN's 5-layer water tanks are the answer to this specific challenge. Five co-moulded polyethylene layers, produced in a single rotational moulding cycle, create a tank wall with dual thermal insulation that measurably outperforms both 3-layer and 4-layer specifications in rooftop temperature management. Independent testing in UAE conditions shows 5-layer tanks maintaining stored water temperatures 8 to 15 degrees Celsius below those recorded in equivalent 3-layer tanks at the same location and time of day. Cooler stored water means slower bacterial multiplication, better water taste, reduced cleaning frequency, and improved occupant experience. The five layers are: a UV-stabilised white outer shell that reflects sunlight rather than absorbing it; a black UV barrier that eliminates light penetration and prevents algae; a primary closed-cell polyethylene foam insulation layer; a secondary insulation layer for dual thermal protection; and a food-grade white inner liner certified safe for potable water contact. All KHAZAAN 5-layer tanks are UAE Municipality Certified and carry a 5-year manufacturer's warranty.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturing Process | Rotational Moulding β seamless five-layer one-piece construction |
| Layer 1 β Outer White | UV Stabilised Polyethylene β reflects sunlight, clean white exterior |
| Layer 2 β Black UV Barrier | Complete light block β prevents algae formation in stored water |
| Layer 3 β Primary Insulation | Closed-cell polyethylene foam β primary thermal barrier |
| Layer 4 β Secondary Insulation | Second insulation layer β dual thermal protection unique to 5-layer specification |
| Layer 5 β Inner White | FDA Food Grade Polyethylene β anti-bacterial, anti-fungal, odour-free, potable water safe |
| Temperature Advantage | Stored water 8β15Β°C cooler than 3-layer tanks in direct UAE summer sun |
| Sizes Available | 100L, 250L, 500L, 1,000L, 2,000L, 3,000L, 5,000L, 10,000L β custom on request |
| Temperature Rating | -20Β°C to +60Β°C ambient |
| Certification | UAE Municipality Certified for potable water |
| Warranty | 5 years from purchase date |
Key Benefits
Who Uses This Tank?
Open Rooftop Tanks in Direct UAE Sun
The primary use case for 5-layer tanks. Direct afternoon sun on an open UAE rooftop pushes standard tank temperatures to 40 to 50 degrees Celsius. Dual insulation reduces this to 30 to 35 degrees, with real improvements to water safety, taste, and quality.
Hotels, Hospitals, and Healthcare Facilities
Buildings with water hygiene obligations and high occupancy use 5-layer tanks as the responsible specification. The combination of cooler storage temperature, anti-bacterial inner liner, and light-blocking UV barrier supports the best achievable water quality from a polyethylene tank.
Premium Villas and High-End Residential
Property owners who want the best available specification for occupant comfort and water quality choose 5-layer tanks for rooftop positions. The white exterior and superior performance make them the premium visible choice for premium properties.
Why Buy From KHAZAAN?
All tanks meet UAE potable water storage requirements
We stock tanks from UAE's top certified manufacturers
Same-week delivery across all 7 emirates
Frequently Asked Questions
What is a 5-layer water tank and how does it work?
A 5-layer water tank is manufactured by rotational moulding using five distinct polyethylene materials loaded in sequence into the mould. The outer white UV-stabilised layer reflects sunlight. The black barrier layer blocks all light penetration. The primary foam insulation layer slows heat transfer from outer to inner surfaces. The secondary insulation layer adds a second thermal barrier unique to the 5-layer specification. The food-grade white inner layer provides safe potable water contact. Together these layers maintain stored water at measurably lower temperatures than any standard polyethylene tank in UAE rooftop conditions.
How much cooler is a 5-layer tank compared to a 3-layer?
In UAE conditions with direct rooftop sun exposure, 5-layer tanks consistently maintain stored water temperatures 8 to 15 degrees Celsius below those in equivalent 3-layer tanks. The precise difference depends on tank size, sun angle, ambient temperature, and tank fill level. The gap is most pronounced during peak afternoon hours in July and August, when standard tanks can reach 45 to 50 degrees Celsius and 5-layer tanks stay closer to 30 to 35 degrees.
Why does water temperature matter in a UAE rooftop tank?
Water temperature directly affects bacterial growth rates. Bacteria including Legionella and E. coli multiply much faster between 25 and 50 degrees Celsius than at lower temperatures. A standard rooftop tank in UAE summer can hold water in the rapid-growth temperature range for many hours each day. A 5-layer tank's insulation reduces time in this danger zone, improving water hygiene between cleaning cycles. Cooler water also tastes better and is more comfortable for bathing.
What is the second insulation layer in a 5-layer tank?
The second insulation layer (Layer 4) is an additional closed-cell polyethylene foam layer that sits between the primary foam core (Layer 3) and the food-grade inner liner (Layer 5). This second layer adds to the thermal resistance of the tank wall, providing incremental insulation performance beyond what a single foam layer achieves. It is the structural feature that distinguishes a 5-layer tank from a 4-layer tank and accounts for the superior temperature performance in direct-sun installations.
Is a 5-layer tank better than a 4-layer for UAE rooftops?
For open rooftops in direct UAE afternoon sun, yes. The second insulation layer provides measurable additional temperature benefit, and the white reflective outer shell reduces solar heat absorption at the starting point. For covered plant rooms, semi-shaded positions, or standard residential rooftops with some overhang, a 4-layer tank provides good performance at a lower price. The 5-layer specification delivers the most value when the installation position maximises sun exposure.
Does the 5-layer tank prevent algae growth?
Yes. The black UV barrier layer (Layer 2) in a 5-layer tank completely blocks light from reaching the stored water. Algae requires light to grow via photosynthesis. Without light penetration, algae cannot establish in the tank regardless of how warm the water becomes or how long the tank sits between cleaning cycles.
Is a 5-layer water tank approved for drinking water in UAE?
Yes. The inner layer (Layer 5) is FDA food-grade white polyethylene, free from recycled material, plasticisers, and harmful additives. All KHAZAAN 5-layer tanks carry UAE Municipality Certification for potable water storage, confirming compliance with UAE Standard ES 5775 and applicable health regulations.
How often should a 5-layer tank be cleaned?
Due to the lower stored water temperatures maintained by 5-layer insulation, bacterial growth rates are lower than in standard tanks. This can extend practical cleaning intervals compared to 3-layer tanks in the same position. Professional tank cleaning every 6 to 12 months remains the standard recommendation to comply with UAE municipality health requirements.
What sizes of 5-layer tanks does KHAZAAN supply?
KHAZAAN stocks 5-layer tanks in 100L, 250L, 500L, 1,000L, 2,000L, 3,000L, 5,000L, and 10,000L. WhatsApp KHAZAAN on +971509583173 for current stock availability and delivery timelines for your required size.
Are 5-layer tanks worth the premium over 3-layer in UAE?
For rooftop tanks in direct UAE sun, consistently yes. The water quality and temperature benefits are real and measurable. For shaded, indoor, or underground positions where temperature rise is minimal regardless of tank specification, a 3-layer tank performs equally well and is more cost-effective. The decision comes down to installation location and how important water temperature and quality are to the building's occupants or manager.
Do 5-layer tanks rust or require special maintenance?
No. Like all polyethylene tanks, 5-layer tanks are completely rust-free and corrosion-free. The maintenance requirement is annual cleaning and periodic inspection of fittings, identical to 3-layer and 4-layer tanks. The smooth food-grade inner surface of the 5-layer tank is easy to clean and inspect.
Are 5-layer water tanks environmentally responsible?
Yes. Polyethylene is fully recyclable. The extended service life of a well-maintained 5-layer tank, combined with the reduced bacterial loading that results from cooler storage temperatures, means fewer replacements and potentially reduced water waste from tank drainage during cleaning over the building's operational life.
